We construct concrete retaining walls in Kettering, OH to stabilize slopes, manage drainage, and shape your landscape. Our walls are engineered for strength and built with proper footing, reinforcement, and drainage behind the wall. From low garden borders to taller structural walls, we create solutions that are both functional and attractive.
Legendary Concrete Kettering provides professional concrete retaining wall throughout Kettering, OH, Ohio and the surrounding area. Our licensed, insured crew delivers safe, clean, on-time work with a free estimate before anything begins. Call 937-872-4817 or request your free quote.
Engineered Concrete Retaining Walls for Kettering Properties
Concrete retaining walls do more than hold back soil. When they are engineered correctly, they stabilize slopes, protect foundations, and create usable space on Kettering properties that would otherwise be wasted. Legendary Concrete Kettering designs and installs concrete retaining wall systems that are built for our local soil conditions, freeze-thaw cycles, and the specific drainage challenges we see across Montgomery County.
Whether you are dealing with a sinking old railroad tie wall in Belmont, a steep backyard in Southern Hills, or erosion near a driveway in Moraine and West Kettering, our team starts by looking at how water moves across your property and how the soil behaves through the seasons. From there, we match the right type of concrete retaining wall to your site so it stays straight and stable instead of cracking, leaning, or bulging after a few winters.
We handle everything from short garden terraces, 2 to 3 feet high, to structural retaining walls over 4 feet that require engineered plans and permitting. Our focus is on longevity, so every recommendation we make is tied to performance, not just appearance.
Types of Concrete Retaining Walls We Install
Legendary Concrete Kettering works with several concrete retaining wall options so we can match structure, budget, and aesthetics to your property.
Cast-in-place concrete walls: These are continuous walls formed and poured on site. They are ideal where we need strong structural support, such as close to a foundation, next to driveways or parking slabs, or for taller walls where soil pressure is significant. With cast-in-place, we can shape curves, corners, and steps very precisely.

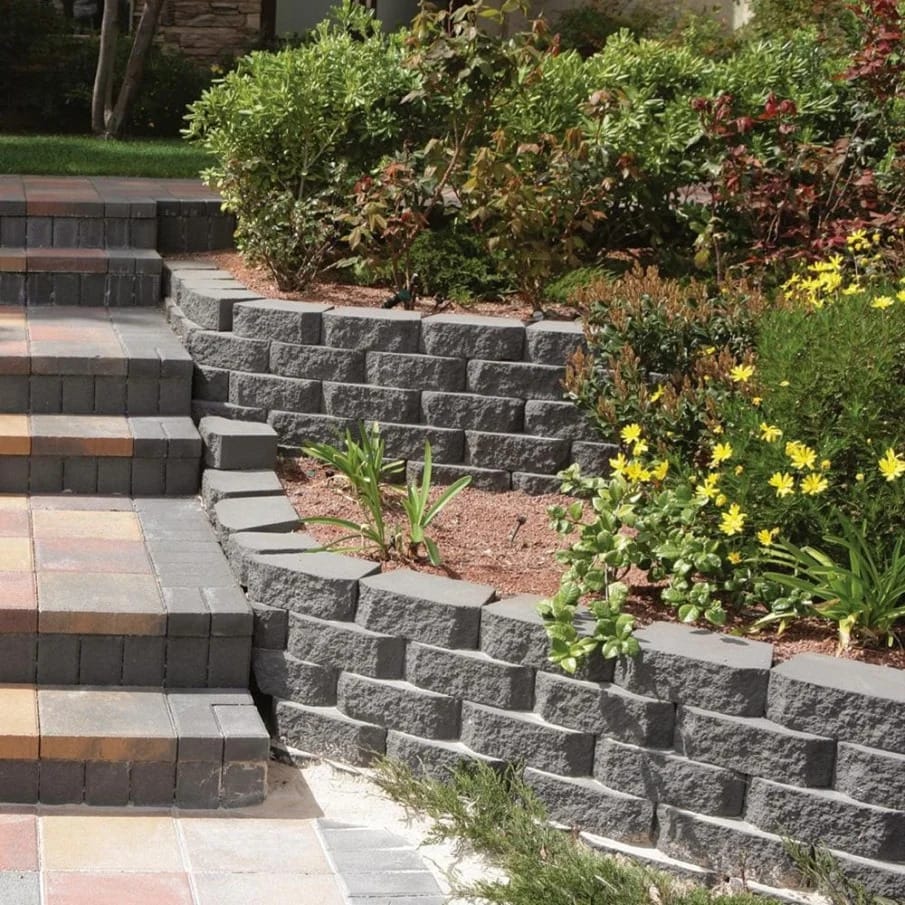

Segmental or modular block systems: These use interlocking concrete blocks designed for retaining applications. They are common in Kettering yards behind patios, along walkout basements, or to create tiered planting beds. Many systems are dry stacked with internal locking features and sometimes geogrid reinforcement, and they allow water to drain through the wall face.
Concrete with stone or veneer facing: For homeowners who want structural strength with a more natural look, we can build a structural concrete retaining wall and then apply stone veneer, textured panels, or stamped concrete finishes on the exposed face. This is common in front yard installations in neighborhoods like Greenmont and Oakwood-adjacent areas, where curb appeal matters.
Terraced concrete retaining systems: On steeper slopes, stacking one tall wall often creates excessive load and requires heavy engineering. Terracing into two or three shorter concrete retaining walls with planting beds in between spreads out the load and often saves cost while improving drainage and appearance.
Our Step-by-Step Installation Process
A durable concrete retaining wall always starts with proper planning and base preparation. Here is how Legendary Concrete Kettering typically approaches a project.
1. Site visit and assessment: We walk the property, measure grade changes, identify where water currently flows, and check for signs of soil movement like cracked patios or leaning fences. We also locate utilities so excavation can be done safely.
2. Design and engineering: For walls over 4 feet or those carrying loads like driveways, parking, or building foundations, we involve an engineer and create drawings that specify footing depth, wall thickness, reinforcement steel, and drainage details. For lower landscape walls, we still calculate wall height, surcharge loads, and required base thickness.
3. Excavation and base preparation: We excavate to below frost depth where required for cast-in-place walls or to the depth specified by the block manufacturer for modular systems. The base is then compacted using plate tampers or rammers and topped with a graded aggregate base (typically 4 to 12 inches thick, depending on wall size). Proper compaction is critical to avoid settlement.
4. Forming and reinforcement: For poured concrete retaining walls, we set heavy-duty forms and install rebar horizontally and vertically according to the engineering plan. This steel reinforcement is what prevents cracking and bowing once the soil is backfilled against the wall.
5. Concrete placement: We place ready-mix concrete from local Kettering and Dayton area plants, selected for the right strength rating and air entrainment to handle Ohio freeze-thaw cycles. We consolidate the concrete to remove air pockets, then finish the exposed face with a smooth, broom, or textured pattern, depending on your design.
6. Drainage and backfill: After the wall cures to the required strength, we install a perforated drain tile along the base behind the wall, wrap it in filter fabric, and connect it to a daylight outlet or drainage system. Then we backfill in layers with free-draining gravel or suitable fill, compacting each lift. Proper drainage and compaction are the keys to preventing pressure buildup and premature failure.
7. Final grading and clean up: We grade the surface so water sheds away from the wall, then restore lawn or landscape areas and remove all construction debris so you are left with a clean, functional finished space.
Local Soil, Drainage, and Code Considerations in Kettering, OH
Kettering properties have a mix of clay-heavy soils and compacted fill, especially around older homes. Clay holds water, which increases lateral pressure behind a retaining wall when it becomes saturated. When temperatures drop, that moisture freezes and expands, which is why poorly built walls around here lean and crack after a few winters.
Legendary Concrete Kettering designs every concrete retaining wall to perform in these conditions. That means deeper footings or bases in sections with frost susceptibility, plenty of weep holes or drainage paths, and backfill that drains better than the native soil. In some backyards, especially those backing to creeks or shared property lines, we add geogrid reinforcement that extends back into the slope to lock the retained soil mass to the wall.
Local building codes and HOA rules also matter. In most cases around Kettering, retaining walls over 4 feet in exposed height require permits and engineered drawings. Additionally, if a concrete retaining wall is near a sidewalk, driveway, or neighbor’s property, we check setback rules and any guardrail requirements if the drop is significant. We routinely coordinate with the city and with local HOAs so homeowners do not run into compliance issues after the wall is built.
Snowmelt and stormwater from heavy summer rains can overwhelm poorly planned systems. On sloped lots along Wilmington Pike, Far Hills Avenue, and in older subdivisions, we often integrate surface drains or swales along the top of the wall to intercept roof runoff or uphill water before it reaches the wall. Managing the water is just as important as the wall itself.
Cost Factors and How We Build for Long-Term Value
Concrete retaining wall costs in Kettering vary widely, and understanding what drives the price helps you compare estimates fairly.
Key cost factors include:
Wall height and length: Taller walls must resist more soil pressure, so they need thicker sections, more reinforcement, and more substantial bases. A 2 foot garden wall is much simpler than a 7 foot structural wall holding up a driveway.
Site access: If we can reach the wall area with equipment for excavation and backfill, labor costs stay lower. Tight access between homes or steep rear yards may require more hand work or smaller machines.
Soil conditions: Saturated clay, buried debris, or unstable fill require more excavation, thicker bases, and additional drainage measures. We do not guess at this. We probe and inspect during the estimate so there are fewer surprises.
Drainage design: Including drain tile, gravel backfill, and outlets has an upfront cost but is essential for longevity. Skipping or cutting corners on drainage is how cheaper walls fail in a few years.
Finish and appearance: Smooth, broom, stamped, or veneer finishes each have different labor and material costs. Tiered or curved walls with integrated steps also increase complexity.
At Legendary Concrete Kettering, we present options so you can see where spending more adds structural value and where it is purely aesthetic. Our goal is to build a concrete retaining wall that you do not have to think about again for decades, rather than the least expensive wall that looks fine for one or two seasons then begins to move.
Common Problems We Fix With New Retaining Walls
Many of our projects start with a failing wood, railroad tie, or undersized block wall that was never engineered for the pressures it now sees. In Kettering we commonly see these issues:
Leaning or bulging walls: Often caused by inadequate base compaction, poor drainage, or a wall that was built too light for the retained height. We typically remove the failing structure, reduce the slope where possible, and replace it with a properly reinforced concrete retaining wall and engineered drainage.
Rotting timber or railroad ties: These may last a decade or two, but eventually rot, separate at joints, and attract insects. When we replace them, we often reconfigure the layout with concrete terraces, which allows plantings and easier access while still stabilizing the hill.
Cracked or broken block systems: Homeowner-grade garden blocks from big box stores are not designed for taller, load-bearing walls. We replace these with structural retaining wall systems or cast-in-place concrete that can handle vehicle loads from nearby driveways or parking pads.
Erosion around driveways and patios: Where a driveway or patio edge drops off, erosion can undermine the slab. We install low concrete retaining walls with proper footing and tie them into the slab edge when appropriate, then correct the drainage so water no longer eats away at the support.
In each situation, we look beyond the symptom. We identify why the old wall failed, whether soil movement, water, or poor installation, and then design the new concrete retaining wall to specifically eliminate those failure points.
Why Homeowners Choose Legendary Concrete Kettering
Homeowners and property managers across Kettering trust Legendary Concrete Kettering because we treat concrete retaining walls as structural work, not just landscaping. We combine local field experience with proper engineering practices so your wall does its job without constant maintenance.
We provide clear, written proposals that spell out wall type, thickness, reinforcement details, drainage components, and finish options. That way you can compare our plan line by line with any other quote, instead of guessing what is included. During construction, our crew keeps the site organized and communicates daily about progress, access, and any unexpected conditions uncovered during excavation.
If you are considering a concrete retaining wall, we encourage you to contact us early in your planning. We can often suggest design tweaks, such as shifting wall alignment, adding steps, or splitting a tall wall into terraces, that save cost and improve performance. Whether you want to reclaim a sloped backyard for usable lawn, protect your foundation from erosion, or stabilize a driveway edge, Legendary Concrete Kettering is prepared to build a retaining wall that fits your property, budget, and long-term plans.
