We install commercial concrete foundations and footings in Kettering, OH for retail, industrial, and multi family projects. Our team follows engineered plans to place footings, grade beams, and slabs that support heavy loads. With accurate layout, reinforcement, and quality control, we deliver structural concrete that meets code and project requirements.
Legendary Concrete Kettering provides professional commercial concrete foundations throughout Kettering, OH, Ohio and the surrounding area. Our licensed, insured crew delivers safe, clean, on-time work with a free estimate before anything begins. Call 937-872-4817 or request your free quote.
Commercial Concrete Foundations Built for Kettering Businesses
When a commercial building in Kettering goes up, the concrete foundation and footings are what keep it standing straight and dry for decades. Legendary Concrete Kettering focuses specifically on commercial concrete foundations that match local soil conditions, city code requirements, and the actual loads your building will put on the ground.
We work on retail plazas, offices, light industrial buildings, restaurants, medical spaces, and tenant build outs. Around Kettering, that often means foundations for infill projects on smaller lots, additions to existing structures, and retrofits where old foundations were underdesigned or have settled over time. We look at how your building will be used, where the heavy point loads are, and how nearby drainage will affect the soil around your foundation.
Instead of a one size fits all slab, we plan footing width, depth, and reinforcement around your structural plans and actual field conditions. That can mean stepped footings to follow sloped grades, thickened edge slabs for storefront glass lines, or isolated pad footings under steel columns. Our goal is simple, a foundation that passes inspection the first time and does not shift, heave, or crack in a way that affects your building or tenants.
Site Evaluation, Layout, and Excavation
Commercial concrete foundations start long before the first concrete truck backs up. Our crew begins with a walk of your Kettering site to check access for equipment, existing utilities, and water drainage patterns. In this area we often see shallow utility lines and older storm drains, so we verify what is underground before digging. If you already have a geotechnical report, we use it. If you do not, we rely on past project data in the immediate area and field checks with test holes to understand soil bearing capacity.
Once we know what we are digging into, we set layout based on your engineer's drawings, using string lines, laser levels, and batter boards to mark footing locations, slab edges, and column centers. Accuracy at this stage matters, because even small layout errors can cause headaches later with steel columns, plumbing stub ups, and storefront systems.
Excavation for commercial footings in Kettering usually goes 30 to 42 inches deep to get below frost line, but depth and width are dictated by engineering. In some pockets around the Mad River and older neighborhoods, we encounter soft or fill soils. In those cases we may over excavate and bring in compacted structural fill or use wider footings to spread the load. We compact the subgrade with plate tampers or rollers, then proof roll to watch for pumping or soft spots that would lead to settlement later.
Forming, Reinforcement, and Concrete Placement
After excavation, we build footing and wall forms using wood or modular panel systems. For commercial foundations, straighter and stiffer forms help keep anchor bolt rows and wall faces true so your steel or masonry sits correctly. We set forms to the finish elevation called out on the plans, using rotary lasers to make sure the foundation height lines up with door thresholds, sidewalks, and adjacent slab areas.

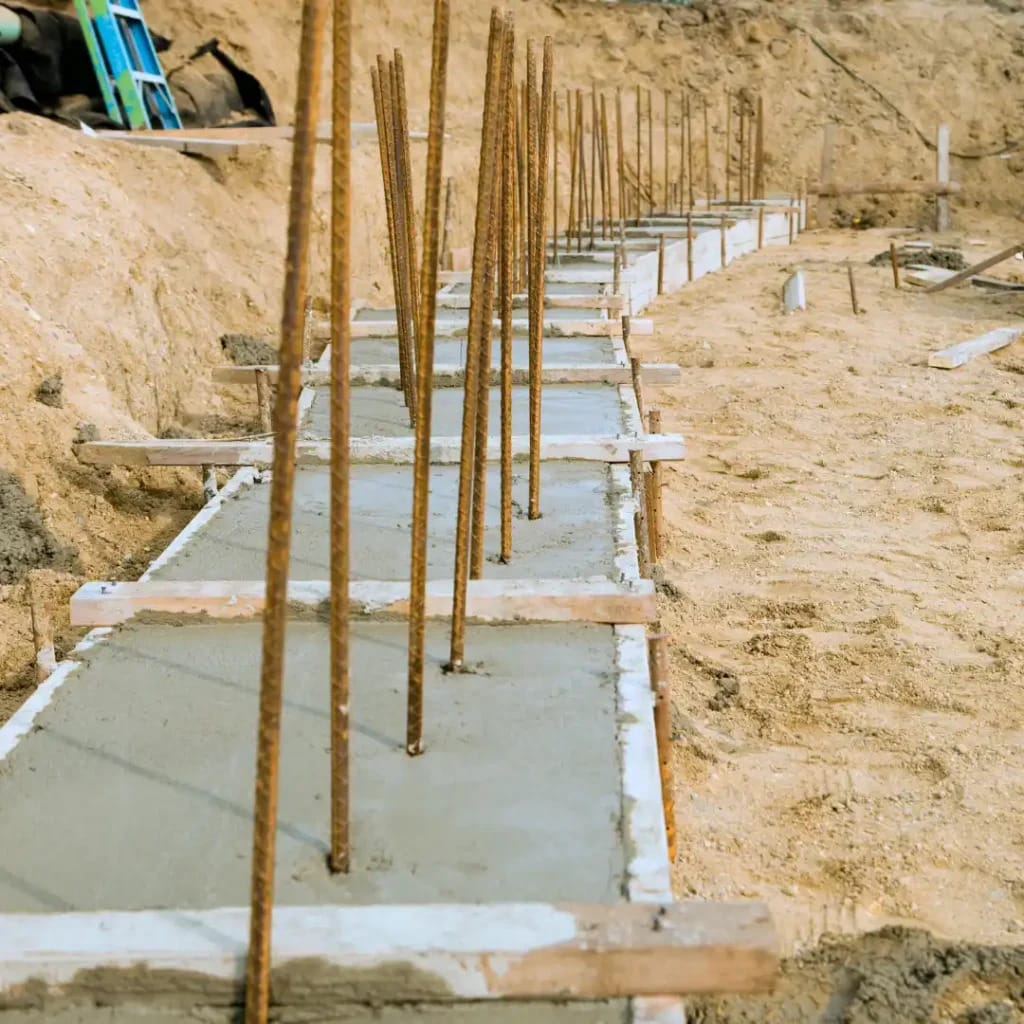

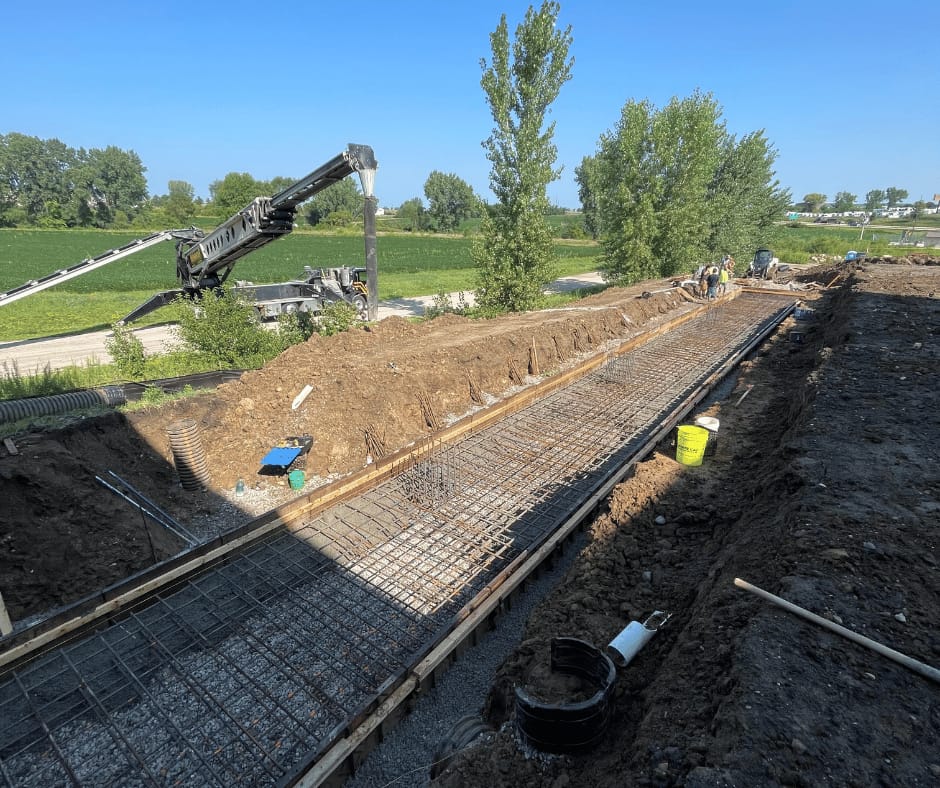

Reinforcement is where many commercial foundations differ from residential. We tie continuous rebar cages for strip footings, place dowels for future slab connections, and install heavy bar mats or cages in isolated column pads. All bar sizes, lap lengths, and spacing follow the structural drawings. Around Kettering, inspectors pay close attention to rebar placement, cover, and anchor bolt locations, so we double check before calling for inspection.
For most commercial concrete foundations and footings, we use a 4000 psi mix or stronger with air entrainment to handle freeze thaw cycles, and aggregate sized correctly for the rebar layout. In tight downtown Kettering sites or interior pours, we use pump trucks to place concrete where trucks cannot reach. We vibrate concrete around congested reinforcement so there are no voids under column bases or along wall faces. We screed footing tops level so anchor bolts and base plates bear flat. In winter, we use heated water in the mix, insulated blankets, and sometimes ground thaw units to keep concrete from freezing during initial cure.
Local Conditions, Common Problems, and Cost Drivers
Kettering soils range from stable clay to pockets of fill, and the freeze thaw cycle here is tough on poorly built foundations. We often get calls about slab edges heaving near exterior doors, settlement along older block foundations, or cracks transferring into masonry walls. Most of these problems trace back to undersized footings, poor drainage, or lack of reinforcement. When Legendary Concrete Kettering designs and builds commercial concrete foundations, we plan for those issues upfront.
We slope grades away from foundation walls, coordinate downspout drains, and recommend perimeter drains where groundwater is a concern. For buildings with heavy rooftop HVAC units or racking systems, we plan thicker footings or isolated pads beneath those point loads instead of relying solely on a flat slab. In remodels where a new interior column is added on an existing slab, we saw cut the floor, excavate, and pour a new footing under that load rather than hoping the old slab can carry it.
Costs for commercial concrete foundations in Kettering are driven mainly by excavation depth, footing size, reinforcement requirements, and site access. Deep footings for taller structures, complex shapes around irregular property lines, and heavily reinforced mats all add labor and concrete volume. Tight sites that require hand work, shoring, or small equipment take longer. Installing under slab insulation, vapor barriers, or thickened slabs under machinery also affects price. We break out these items clearly in our estimates so owners and general contractors see what they are paying for and where adjustments can be made without sacrificing structural performance.
Coordination, Scheduling, and What To Expect When You Hire Us
Commercial projects move on tight schedules, so our first step is to coordinate with your engineer, architect, and general contractor. We review the structural foundation plans, look for conflicts with plumbing and electrical undergrounds, and set a realistic pour sequence. Around Kettering, many sites involve working around existing tenants or neighboring businesses, so we schedule noisy work and concrete deliveries to minimize disruption.
A typical commercial foundation project with Legendary Concrete Kettering goes through clear stages. Layout and excavation, inspection of open trenches and reinforcement, concrete placement, initial cure, then any required patching or surface prep for framers and steel erectors. We keep daily communication with the site superintendent about weather impacts, inspection timing, and delivery windows so other trades can plan around us.
After the concrete is placed, we monitor curing and, when needed, use curing compounds or coverings to control moisture loss and reduce shrinkage cracking. Before turning the work over, we verify anchor bolt patterns, check elevation tolerances against the plans, and confirm that bolt projections, column pads, and slab edges are ready for structural steel and walls. When we leave, your commercial concrete foundations are ready to build on and your schedule can move forward without surprises.
